Pyrolysis plant
Pyrolysis plant reator
Reactor is the main part of the pyrolysis plant, it determines the service life of the whole pyrolysis plant. So reactor’s quality is very very important in the whole pyrolysis plant line . It not only determine the service life of the reactor, but also determine the safety, because the whole pyrolysis plant line only here have thefire and pressure.

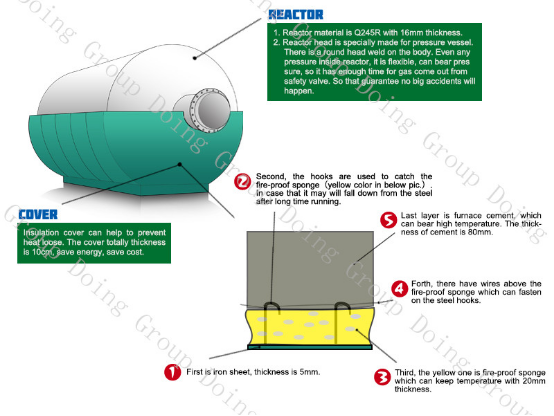

Draft reactor of pyrolysis plant
How we ensure our pyrolysis plants' reactor’s quality? We do from the beginning. We have laboratory testing the quality of steel. Every time we buy steel, we must test them in our laboratory to see whether it is standard Q245R boiler plate. In our laboratory, there are steel impact test cryogenic tank, steel plate tensile test, steel impact tester and so on all for testing the quality of the steel. Then we have the fully automatic CNC laser cutting machine to cut the steel and use the submerged automatic arc welding to weld the steel automatically. Then use the X-ray test for welding crack line. Once get through, then we go on. So we are very sure about our pyrolysis plants’ quality, usually the reactor can use 5-8 years.
- 1.High oil yield;no bad smell during process.
- 2.Enough safety systems;normal pressure.
- 3.Recycled tail gas to heating no waste emission.
- 4.Auto welding to ensure life, service life will be 8-10years.
- 5.Excellent service(pre-service,selling service,after-sale-service).
