Used tyre recycling machine
Used tyre recycling machine is a good project for recycling centers, collection organizations etc. Used tyre recycling machine is a new pyrolysis technology can convert waste tyre to fuel oil ,carbon black and steel wire. DOING Used tyre recycling machine adhere to constantly updated product, guarantee high-quality product and offer full-service for our clients. DOING is your trustworthy partner, welcome to contact us.
Advantages of Doing used tyre recycling machine
Advantages of Doing used tyre recycling machine
1. Safety.
We have some safe devices such as the pressure gauge, alarming ring, safety valve. at the same time we have the anti-back fire device which can avoid the fire back into the reactor.
2. Environment protecting.
If you come to visit our company to see the running plant, you cannot even see the vapor. as we have the dust removal device and dust removal pool.
3. Energy saving.
Our anti-back fire device can collect the exhaust gases which can be fuels after the oil is out so is very convenient and you can save the energy .at the same time, we have the catalyst
chamber which can reduce the temperature of the catalytic prolysis of the tires and plastics. so you can save lot's of energy. except this ,we have vacuum device which let the reactor be negative pressure. So you can image.
4. High degree of automatic.
We have many automatically devices such as: auto-feeder, carbon black elevator, oil pumping automatic, reducing pressure automatic.

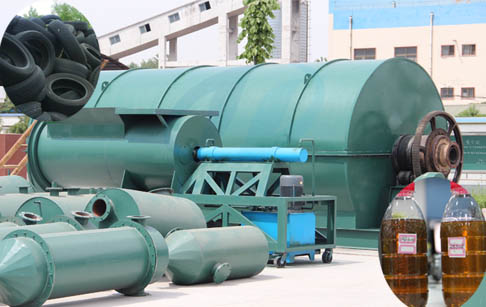

Used tyre recycling machine picture show :

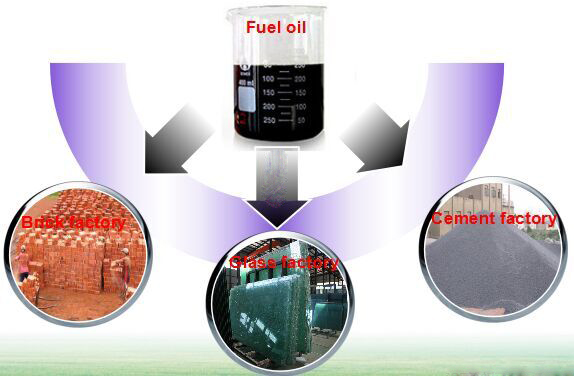

Used tyre recycling machine fuel oil application
Fuel oil application
Fuel Oil (40% to 45%)
The main application of oil products produced by our used tyre recycling machine that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.
Carbon Black Powder (30% to 35%)

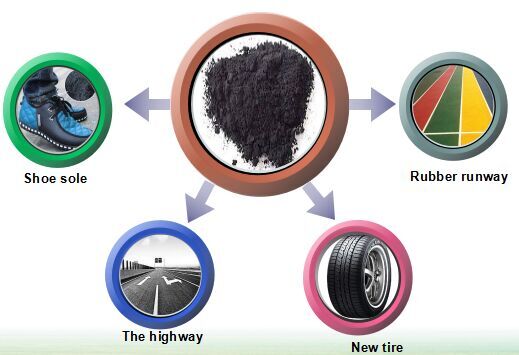

Carbon black application
Used tyre recycling machine technical data
| Technical parameter of Used tyre recycling machine | ||||
| No. | Items | Contents | ||
| 1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
| 2 | Raw material | Waste tyre | Waste tyre | Waste tyre |
| 3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
| 4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
| 5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
| 6 | Operating pressure | Normal | Normal | Normal |
| 7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
| 8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
| 9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
| 10 | Total power | 19KW | 19KW | 19KW |
| 11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
| 12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
| 13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
| 14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
| 15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
| 16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
| 17 | Delivery time | 20days | 20days | 20days |
| 18 | Weight | 27T | 30T | 35T |
| Prepared by customer about Used tyre recycling machine | |||
| No. | Item | Consumption | |
| 1 | Coal(for choice) | 500kg/day | |
| 2 | Wood(for choice) | 800kg/day | |
| 3 | Natural gas(for choice) | 100-150kg/day | |
| 4 | Oil(for choice) | 300-350kg/day | |
| 5 | Electricity | 244kwh/day | |
| 6 | Water(recycled) | 60㎥ /month | |
| 7 | Total power | 19kw | |
| 8 | Land area | 35m*15m | |
- 1.High oil yield;no bad smell during process.
- 2.Enough safety systems;normal pressure.
- 3.Recycled tail gas to heating no waste emission.
- 4.Auto welding to ensure life, service life will be 8-10years.
- 5.Excellent service(pre-service,selling service,after-sale-service).
Help customer do project plan,including financial analysis.
Help customer finished
delivery,foundation,installation,trainning,commissioning and try
running.
One year warranty period .
