Plastic to fuel oil conversion machine
Plastic to fuel oil conversion machine
Plastic to fuel oil conversion machine

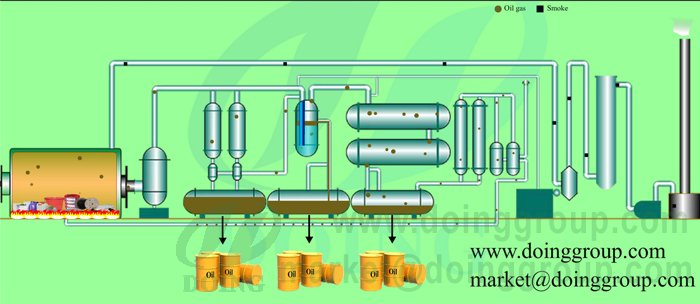

Plastic to fuel oil conversion machine working process
Plastic to fuel oil conversion machine
First, the raw materials are put into the reactor and seal the doors in the reacto
Second, start the machine and reactor will rotating and be heated. When the inside
temperature reaches the degree of 250 to 280, the oil gas will begin to generate while flow through oilgas separator, and continuously produce until the temperature up to the degree of 350 to 460.
Third, in oil gas separator, light component will enter the condensers, meanwhile,
heavy component will be liquefied and then automatically discharged into heavy oil tank
Forth, most of the light component will be liquefied through condensers to crude oil.
Small amount of oil gas cannot be liquefied and will be transferred by water seal tank back to the burning.After all these steps, you can start another batch.
Plastic to fuel oil conversion machine tech data
Second, start the machine and reactor will rotating and be heated. When the inside
temperature reaches the degree of 250 to 280, the oil gas will begin to generate while flow through oilgas separator, and continuously produce until the temperature up to the degree of 350 to 460.
Third, in oil gas separator, light component will enter the condensers, meanwhile,
heavy component will be liquefied and then automatically discharged into heavy oil tank
Forth, most of the light component will be liquefied through condensers to crude oil.
Small amount of oil gas cannot be liquefied and will be transferred by water seal tank back to the burning.After all these steps, you can start another batch.
Plastic to fuel oil conversion machine tech data
| Technical parameter of plastic to fuel oil conversion machine | ||||
| No. | Items | Contents | ||
| 1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
| 2 | Raw material | Waste plastic | Waste plastic | Waste plastic |
| 3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
| 4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
| 5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
| 6 | Operating pressure | Normal | Normal | Normal |
| 7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
| 8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
| 9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
| 10 | Total power | 19KW | 19KW | 19KW |
| 11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
| 12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
| 13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
| 14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
| 15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
| 16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
| 17 | Delivery time | 20days | 20days | 20days |
| 18 | Weight | 27T | 30T | 35T |
| Prepared by customer about plastic to fuel oil conversion machine | |||
| No. | Item | Consumption | |
| 1 | Coal(for choice) | 500kg/day | |
| 2 | Wood(for choice) | 800kg/day | |
| 3 | Natural gas(for choice) | 100-150kg/day | |
| 4 | Oil(for choice) | 300-350kg/day | |
| 5 | Electricity | 244kwh/day | |
| 6 | Water(recycled) | 60㎥ /month | |
| 7 | Total power | 19kw | |
| 8 | Land area | 35m*15m | |

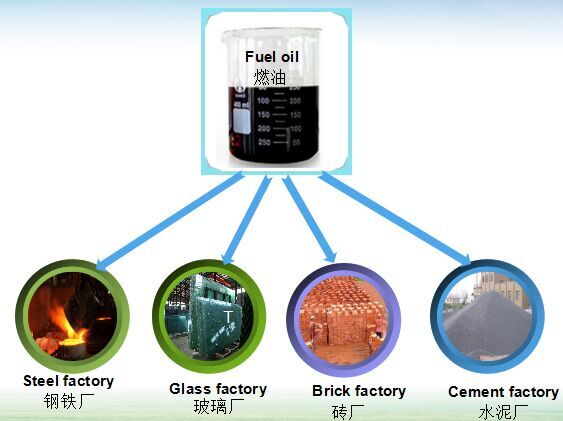

Fuel oil from plastic to fuel oil conversion machineused in below industries
Fuel oil application
B.Glass factory
C.Cement factory
D.Ceramic fatory
E.Aluminum factory
F.Boiler factory
G.Central heating factory
H.Painting factory

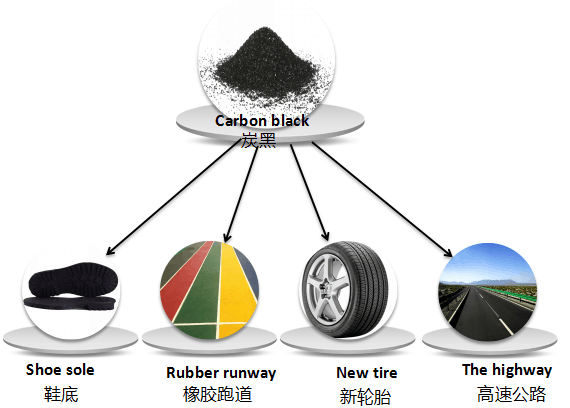

Carbon black application
A.Electric cable jacketing
B.Conveyor ban
C.Hose and doormat
D.Black nylon bag
E.Rubber additive
F.Automatic spare parts
G.Heat isolation
H.Black colorant in rubber materials
- 1.High oil yield;no bad smell during process.
- 2.Enough safety systems;normal pressure.
- 3.Recycled tail gas to heating machine that turns plastic back into oil;no waste emission.
- 4.Auto welding to ensure machine that turns plastic back into oil life, service life will be 8-10years.
- 5.Excellent service(pre-service,selling service,after-sale-service).
Help customer do machine that turns plastic back
into
oil project plan,including financial analysis.
Help customer finished machine that turns plastic
back
into oil delivery,foundation,installation,trainning,commissioning and
try
running.
One year warranty period .
