Biomass Pyrolysis Plant

DATE：2014-09-10/ Waste to energy


Biomass Pyrolysis Plant Working principle :

First our machine is not only suitable for waste tire but also for scrap plastic and biomass.

For the whole process,first we will make feeding the material into reactor.After feeding,it will take 2 hours to get the first oil. This process will last about 8 hours.First the material will become into oil gas, the oil gas will flow into the catalyst chamber.Catalyst chamber will purify the oil gas and slow down speed. then the oil gas will go into the safety device-oil water separator. Here 80% oil gas will be cooled into liquids by water in oil water separator.

Now the oil liquids from the oil water separator will be collected in the first oil tank.The heavy oil gas which are not cooled down will flow into the 2 horizontal condensors after big cooling,spme oil gas also be cooled into the oil then collected in the second oil tank.here not all oil gas can be cooled into the oil , some oil gas which can not be cooled at normal temperature and pressure we will recycle them into the furnace as fuel to heat waste tire to oil  recycling machine .So after the oil come out,you have no need to offer fuel by yourself.

After oil come out totally,it is better for you to cool down pyrolysis machine ,it is safe to discharge carbon black. After discharge the carbon black ,you can start next batch.

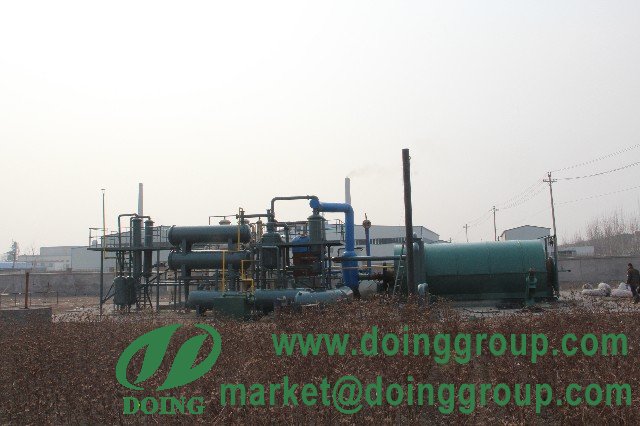

biomass pyrolysis machine
Biomass Pyrolysis plant

  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating machine that turns plastic back into oil;no waste emission.
  • 4.Auto welding to ensure machine that turns plastic back into oil life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Help customer do machine that turns plastic back into oil project plan,including financial analysis.
Help customer finished machine that turns plastic back into oil delivery,foundation,installation,trainning,commissioning and try running.
One year warranty period .
If you are intrested in investment machine that turns plastic back into oil ,or any other questions,such as project report,project cost,you can leave a message in below form, we will back to you once we got your message.
