Pyrolysis plant

Home>PRODUCT>Pyrolysis plant > Continuous waste tire to fuel oil pyrolysis plant
waste to oil plant

Continuous waste tire to fuel oil pyrolysis plant

DATE：2016-12-22/ Pyrolysis plant
tire to fuel oil

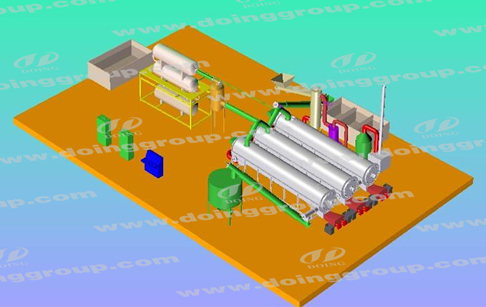

3D picture of  continuous waste tire to fuel oil pyrolysis plant
Pyrolysis is a thermochemical decomposition of orgnic material at elevated temperatures in the absence of oxygen. Pyrolysis typically occurs under pressure and at the operating temperatures at 430℃. Pyrolysis is a special case of thermolysis, and is the most commonly used for organic materials, being, therefore, one of the processed involved in charring. In general, pyrolysis os organic substances produces gas and liquid products and leaves a solid residue richer in carbon content. Extreme pyrolysis, which leaves mostly carbon as the residue, is called carbonization. The process is used heavily in the chemical industry, for example, to produce charcoal, activated carbon, methanol, and other chemicals from wood, to convert ethylene dichloride into vinyl chloride to make PVC, to produce coke from coal, to convert biomass into syngas, to turn waste into safely disposable substances, and for transforming medium-weight hydrocarbons from oil into lighter ones like diesel or gasoline. All these specialized used of pyrolysis may be called various names, such as dry distillation, destructive distillation, or cracking, but all same principle.

pyrolysis plant
Continuous waste tire to fuel oil pyrolysis plant
For us, we mainly specialized in manufacturing and supplying waste tire/plastic/rubber pyrolysis plant, mostly for processing the rubber products to get fuel oil. On one hand, with the modernization of the society, rubber industry develops at a rapid speed, rubber manufactures are widely used in many field of life. On the other hand, the pollution of scrap rubber or plastics is increasing for its difficulty in disposing safely, which is also called “Black Contamination”, has become a big threat to the environment and is getting increasingly serious.

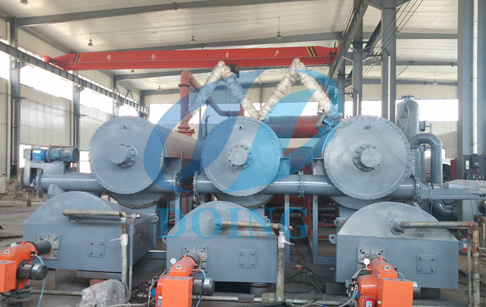

continuous pyrolysis plant
 Continuous waste tire to fuel oil pyrolysis plant
In the early years, the most commonly used pyrolysis plant is mainly the batch operation process, which has low investment but complicated operation process and high labour cost. With the technology improving and customers’ requests, we DOING Company developed a new technology continuous pyrolysis plant. This continuous pyrolysis plant has fully automatic process, which can be controlled by PLC system or computer, thus to save the labour cost. And with the automatic and continuous feeding and discharge system, it can make the the pyrolysis system keep running 24/7 without stop, thus to save the valuable time and energy which are consumed in the batch manual operation system.

Tchnical data of  continuous waste tire to fuel oil pyrolysis plant


No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black


1. Fuel oil (45%-50%): Oil from  continuous waste tire to fuel oil pyrolysis plantcan be used as industrial fuel for burning.
pyrolysis plant

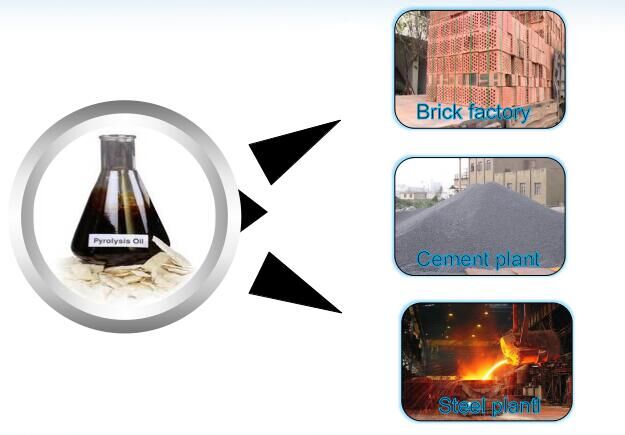

Fuel oil application
2. Carbon black (30%): First, Carbon black from  continuous waste tire to fuel oil pyrolysis plant is crude. You can sell it to the brick factory as internal combustion or to the factory which need it as raw materials, such as shoe, tire, cable and sealant companies. Second, could make further process, make carbon black powder into carbon black briquette, and use it for burning.
tire to fuel oil

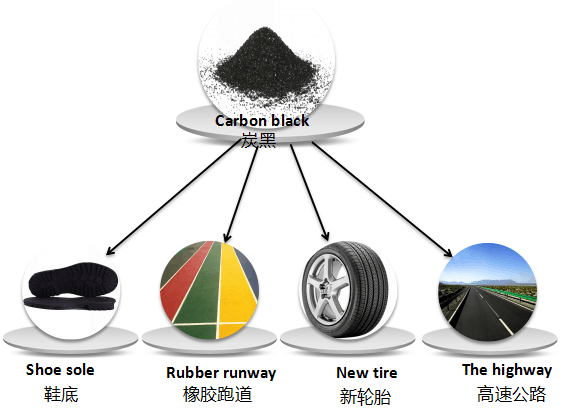

Carbon black
3. Steel wire (10-15%): It can be sold to the iron and steel company directly.
4. Waste gas (5%): we have a special design could recycling it into fire furnace for burning.

  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating machine that turns plastic back into oil;no waste emission.
  • 4.Auto welding to ensure machine that turns plastic back into oil life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Help customer do machine that turns plastic back into oil project plan,including financial analysis.
Help customer finished machine that turns plastic back into oil delivery,foundation,installation,trainning,commissioning and try running.
One year warranty period .
If you are intrested in investment machine that turns plastic back into oil ,or any other questions,such as project report,project cost,you can leave a message in below form, we will back to you once we got your message.
