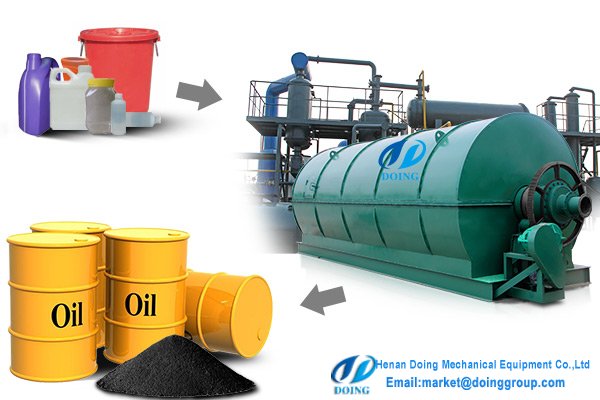

Waste plastic pyrolysis to fuel oil plant

DATE：2014-08-06/ Plastic to oil

We mainly supllier waste plastic pyrolysis to fuel oil plant, waste tyre recycling machine, oil distillation machine, waste engine oil refining equipment etc.

   a> Instead of landfill or burnng, this is a green technology for waste management
   b> Pyrolysis machine - turn waste tire, waste plastic, waste rubber into fuel oil
   c> Distillation machine - turn tire oil, plastic oil, rubber oil into gasoline and diesel
   d> Distillation machine - turn waste engine oil, black oil, crude oil into gasoline and diesel
   e> Waste tire recycling machine, waste tire refining oil plant
    f> Waste plastic recycling machine, Waste plastic pyrolysis to fuel oil plant
   g> Waste oil recycling machine, waste oil refinery plant
Introduction of main parts and features of Waste plastic pyrolysis to fuel oil plant

Reactor	1. Made by Q245R boiler plate 2. Auto-welding both inside and outside 3. With rock wool insulation board
Auto-feeder	1. 60 ton hydraulic pressure 2. Can feed all types of materials 3. Save labor and save time
Catalyst chamber	1. Improve oil yield and oil quality 2. Reduce the speed of oil gas so that it can be better cooled
Oil-water separator	1. Separate oil and water 2. Collect heavy oil 3. Water sealing design keep safety
Condenser	1. The oil gas is cooled separately by small pipes inside condenser 2. Light oil is collected here
Vacuum device	Keep machine running under normal pressure
Anti-back fire device	1. Recycle residual gas to furnace as fuel 2. Water sealing design prevent tempering
Dust removal device	Dispose of flue gas caused by using coal, wood, oil or natural gas.

Main parameters of Waste plastic pyrolysis to fuel oil plant:

Daily capacity	6/8/10/12 ton
Reactor material	Q245R
Thickness of plate	16mm/18mm
Weight	25-35 ton
Power	19kw
Space needed	300 m2
Labor needed	4

Workflow of Waste plastic pyrolysis to fuel oil plant

Work	Time needed (hour)
Feeding	2-3
Preheating	2.5-3
Producing oil	7-8
Cooling	2-3
Slagging	2-3

Fuel needed for Waste plastic pyrolysis to fuel oil plant

Coal (5000 kilocalorie)	500KG
Oil	300-350KG
Gas	100-150KG
Wood	700-800KG

WHY TO CHOOSE US
OUR SERVICES
RELATED EQUIPMENT

1.High oil yield;no bad smell during process.
2.Enough safety systems;normal pressure.
3.Recycled tail gas to heating machine that turns plastic back into oil;no waste emission.
4.Auto welding to ensure machine that turns plastic back into oil life, service life will be 8-10years.
5.Excellent service(pre-service,selling service,after-sale-service).

Help customer do machine that turns plastic back into oil project plan,including financial analysis.

Help customer finished machine that turns plastic back into oil delivery,foundation,installation,trainning,commissioning and try running.

One year warranty period .
